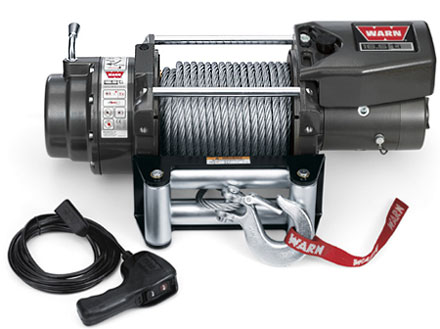

Warn 16.5ti Winch w Roller Fairlead, 68801


Price: $2,199.15
Click here to view our price match policy
Item Number: 68801
Pick up in one of our four Florida locations to save $


Extreme-duty sealing helps protect the winch from the outside elements
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Exclusive brake design provides superior control while winching
  • Aluminum control box cover for added protection of the electronics
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
  • Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
  • 90' of 7/16" (27m of 11mm) diameter wire rope
Motor: 12V 4.6 hp, Gen II, Series Wound
Electrical Control: Contactor
Remote control: Remote switch, ti, with LED indicator 12 ft (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic direct drive cone
Wire rope: 90 ft, 7/16 in diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 ft (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)
Weight: 138 lbs. (63 kgs.)
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 23.6(7.20) 68 amps 1/16500(7484)
2000(907) 12.07(3.68) 138 amps 2/15279(6930)
4000(1814) 9.22(2.81) 189 amps 3/12672(5748)
6000(2721) 7.37(2.25) 240 amps 4/10824(4910)
8000(3628) 6.08(1.85) 291 amps
10000(4536) 5.12(1.56) 342 amps
12000(5443) 4.40(1.34) 393 amps
14000(6350) 3.86(1.18) 444 amps
16000(7257) 3.38(1.03) 494 amps
16500(7484) 3.24(0.99) 507 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 24.2" L. x 8.5" D. x 9.7" H.
(628mm L. x 216mm D. x 247mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
