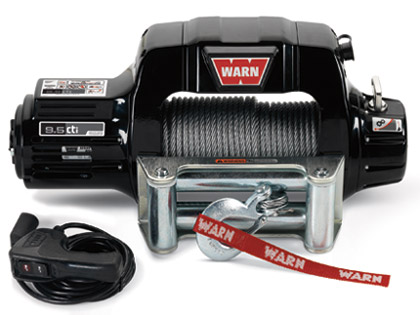

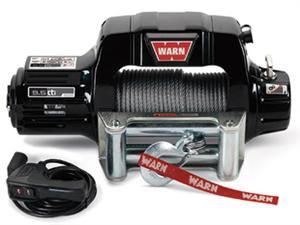

Warn 9.5cti Ultimate Performance Series Winch w Roller Fairlead, 97550

Price: $1,119.99 after Mail-in Rebate

Item Number: 97550

We can ship or you can pick it up at one of our four Florida locations to save $

Quantity:

New contactor control features exceptional durability, extra long life, and superior weather sealing
Series Wound motor and 3-stage planetary gear train deliver 9,500 lbs. of pulling capacity
Extreme duty winch sealing system
Motor-mounted thermal sensor relays temperature information to winch operator by way of the hand-held remote control with LED indicator
Redesigned remote control with thermometric indicator light
High gloss, chip-resistant black powder coat finish over a massive cast-aluminum alloy housing
Comes with 125 ft. of 5/16" wire rope, hook, remote control on 12' lead, and roller fairlead

Rated line pull: 9,500 lbs., (4310 kgs.) single-line

Motor: Series Wound

Electrical controls: Contactor

Remote Control: Remote switch, LED indicator, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 156:1

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 89 lbs. (36.3kgs.)

Wire rope: 125', 5/16" diameter (38m, 8mm diam.)

Fairlead: Roller (Multi-Mount includes hawse fairlead)

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: High-gloss powder coat over primer undercoating

Above performance specs are based on first layer of drum

Winch Dimensions: 23.1" L. x 6.3" D. x 10.4" H. (587mm L. x 160mm D. x 264mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
