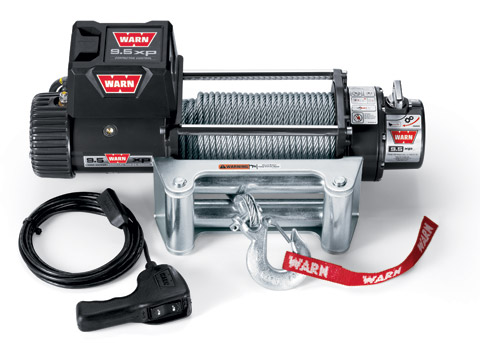

Warn 9.5xp Ultimate Performance Series Winch w Roller Fairlead, 68500
|
|
Price: $1,279.39 after Mail-in Rebate
Click here to view our price match policy
Item Number: 68500
We can ship or you can pick it up at one of our four Florida locations to save $
|
-
High Output Parallel Series Wound winch motor is the strongest and most durable in the industry
- Extreme Duty Winch Sealing. Enables superior water resistance
- Exclusive Brake Design. Provides superior operator control when winching
- Extended-duty control pack delivers long duty-cycle to help you tackle the most demanding pulls
- 3-Stage Planetary Gear Train. Proven to be the most reliable efficient and durable design
- Remote-mount, next-generation control box allows for various mounting options
- Remote control with 12' (3.7m) lead
- High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
-
Wire Rope. 100' 5/16" diameter (30m, 8mm diameter)
| Rated Line Pull: 9,500 lbs. (4310 kgs) single-line
|
| Motor: 12V 6 hp (4.48kw), High Output Parallel Series Wound
|
| Electrical controls: Contactor
|
| Remote Control: Remote switch, 12 ft (3.7m) lead
|
| Geartrain: 3-stage planetary
|
| Gear ratio: 156:1
|
| Clutch (freespooling): Sliding ring gear
|
| Brake: Automatic direct drive cone
|
| Wire rope: 100 ft, 5/16 in diameter (30m, 8mm diam.)
|
| Fairlead: Roller
|
| Recommended battery: 650 CCA minimum for winching
|
| Battery leads: 2 gauge, 72 in (1.83m)
|
| Finish: High-gloss powder coat over primer undercoating
|
| Drum diameter/Length: 2.5 in/9.0 in (6.4cm/23cm)
|
| Weight: 87 lbs (39.5 kgs)
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
38(11.6)
|
70 amps
|
1/9500(4313)
|
| 2000(910)
|
16.8(5.1)
|
175 amps
|
2/8650(4927)
|
| 4000(1818)
|
12.8(3.9)
|
262 amps
|
3/7920 (3595)
|
| 6000(2720)
|
10.1(3.1)
|
335 amps
|
4/7400(3359)
|
| 8000(3630)
|
8.8(2.7)
|
425 amps
|
5/6940(3150)
|
| 9500(4310)
|
7.6(2.3)
|
480 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
|
Winch Dimensions: 22.7" L. x 6.3" D. x 7.7" H.
(577mm L. x 160mm D. x 196 mm H)
|
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
|
|
