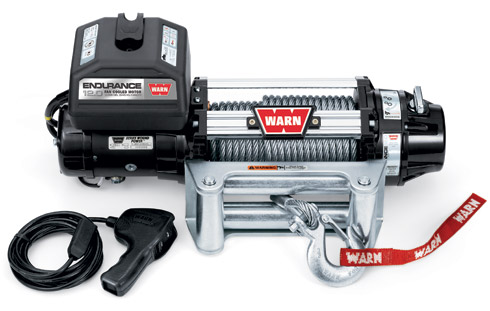

Warn Endurance 12.0 Winch w Roller Fairlead, 73010


Price: $1,348.99 after Mail-in Rebate
Click here to view our price match policy
Item Number: 73010
We can ship or you can pick it up at one of our four Florida locations to save $

This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.

Gives you 12,000 lbs. of pulling capacity with the longest duty cycle of any electric winch on the market today. The specially designed cooling fan automatically turns on when the winch's motor reaches a certain temperature.
  • Remote-mount fan: Cools winch motor for longer duty cycle. Fan has automatic or manual activation
  • Contactor: Sealed and water resistant. Highly reliable; handles high current and allows for long duty cycle
  • Remote control: Weather resistant remote with 3.7m lead and fan activation switch
  • Stainless-steel clutch lever/ hardware: Superior corrosion resistance
  • 3-Stage planetary geartrain: Most reliable and efficient gear reduction system available
  • Mechanical brake: Industryleading patented brake design
  • Long wire rope: 24m of 9.5mm durable, easy-to-wind wire rope
  • Remote-mount control box: Designed to fit most winch mount bumpers
  • Wireless ready: Compatible with the WARN Wireless Control System (PN 76080)

Rated Line Pull: 12,000 lbs. (5440 kgs) single-line
Motor: Series-Wound 4.6 hp 12V
Electrical controls: Contactor
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding ring gear
Brake: Mechanical cone brake
Wire rope: 80 ft of 3/8 in (24m of 9.5mm diam.)
Fairlead: Roller
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/Length: 2.5 in /9.0 in (6.4cm/23cm)
Weight: 100 lbs. (45 kgs)
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 (0) 39.5 (12.0) 47.8 amps 1/12,000 (5440)
2000 (910) 15.1 (4.60) 127.0 amps 2/9517 (4317)
4000 (1810) 10.4 (3.17) 192.0 amps 3/7886 (3577)
6000 (2720) 7.7 (2.35) 257.0 amps 4/6732 (3054)
8000 (3630) 6.1 (1.86) 316.0 amps
9500 (4310) 4.8 (1.46) 358.0 amps
12000 (5440) 3.4 (1.04) 429.0 amps

Above performance specs are based on first layer of drum


Winch Dimensions: 23.4" L. x 6.3" D. x 7.0" H. (594mm L. x 162.5mm D. x 178mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
