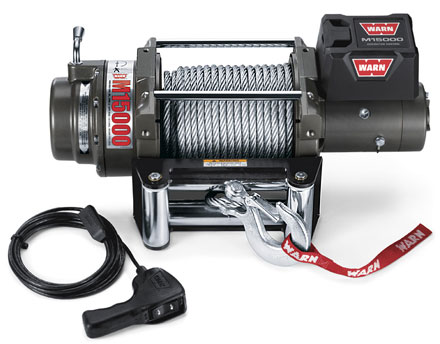

Warn M15000 Winch w Roller Fairlead, 47801

Price: $1,730.39 after Mail-in Rebate

Click here to view our price match policy

Item Number: 47801

We can ship or you can pick it up at one of our four Florida locations to save $

Quantity:

This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.

High strength carrier plates are designed to handle heavy gear train stresses
Series-wound, high-speed motor provides fast line speed and strong pulls
Brake provides superior control while winching
Remote-mount control box allows for various mounting options
Durable 3-stage planetary geartrain for smooth, reliable, operation
Remote control with 12' (3.7m) lead
Chip-resistant powder-coated finish
90' of 7/16" (27m of 11mm) diameter wire rope

Rated Line Pull: 15,000 lbs. (6804 kgs) single-line

Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp

Electrical controls: Contactor

Remote Control: Remote switch, 12 ft (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 315:1

Clutch (freespooling): Rotating Ring Gear

Brake: Automatic Direct Drive Cone

Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)

Weight: 136 lbs. (62kgs.)

Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72 in (1.83m)

Finish: Argent Gray Powder Coat

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	22.2(6.77)	67 amps	1/15000(6804)
2000(910)	7.27(2.22)	135 amps	2/13890(6300)
4000(1810)	5.41(1.65)	185 amps	3/11520(5225)
6000(2720)	4.43(1.35)	235 amps	4/9840(4463)
8000(3630)	3.79(1.16)	285 amps
10000(4540)	3.31(1.01)	335 amps
12000(5440)	2.93(.893)	385 amps
14000(6350)	2.61(.796)	435 amps
15000(6800)	2.48(.756)	460 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 25.2" L. x 8.5" D. x 11" H.
(640mm L. x 215mm D. x 279mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
