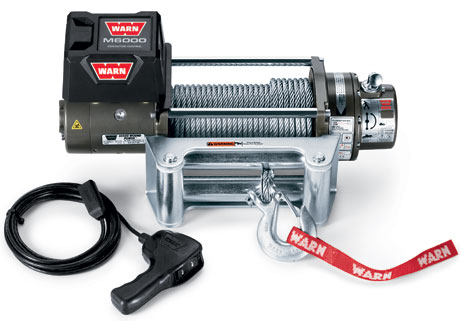

Warn M6000 Premium Winch w Roller Fairlead, 45880
|
|
Click here to view our price match policy
Item Number: 45880
We can ship or you can pick it up at one of our four Florida locations to save $
|
|
Rated line pull: 6000 lbs. (2720 kgs.) single-line
|
|
Motor: Series Wound, 12V 4.8 hp, 24V 2.1 hp
|
|
Electrical controls: Contactor
|
|
Remote Control: Remote switch, 12 ft (3.7m) lead
|
|
Geartrain: 3-Stage Planetary
|
|
Gear ratio: 156:1
|
|
Clutch (freespooling): Sliding Ring Gear
|
|
Brake: Automatic Direct Drive Cone
|
|
Drum diameter/Length: 2.5 in/9.0 in (6.4cm/23cm)
|
|
Weight: 74 lbs. (34kgs.)
|
|
Wire rope: 80 ft, 5/16 in diameter (24m, 8mm diam.)
|
|
Fairlead: Roller
|
|
Recommended Battery: 650 CCA minimum for winching
|
|
Battery leads: 2 gauge, 72 in (1.83m)
|
|
Finish: Argent Gray Powder Coat
|
|
|
12V DC PERFORMANCE SPECS
|
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
|
0
|
48.5(14.8)
|
85 amps
|
1/6000(2722)
|
|
2000(910)
|
23.7(7.22)
|
175 amps
|
2/5460(2477)
|
|
4000(1810)
|
12.9(3.93)
|
360 amps
|
3/5000(2268)
|
|
6000(2720)
|
10.0(3.05)
|
465 amps
|
4/4670(2118)
|
|
| Above performance specs are based on first layer of drum |
|
Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H
(534mm L. x 160m D. x 193mm H.) |
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
|
|
|
