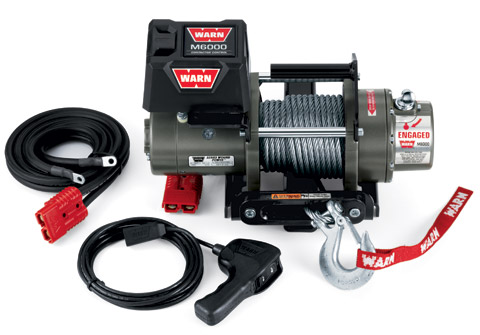

Warn M6000 SDP Portable Winch, 39116

This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.

A short-drum portable winch for light sport utility vehicles, the 4.8 hp M6000 SDP provides plenty of pulling power, can be mounted single-handedly, and stores in a snap. This compact winch comes complete with handle/mounting system for a Class III 2" receiver, hawse fairlead, remote control with 12' lead, free spool clutch, 50' of 5/16" wire rope and power lead with Quick Connect plug for the front of the vehicle. The perfect companion when you take your rig off-road, hunting, fishing or skiing.

This Kit includes winch with built-in carrier, remote, power lead with Quick Connect plugs for front of vehicle and hawse fairlead. Front receiver and rear power cables sold separately.



Rated Line Pull: 6,000 lbs. (2720 kgs) single-line Intended Use/Application: Vehicle Recovery / For Trucks and SUVs Motor: 4.8 hp, Series Wound Remote Control: Remote, 12' (3.7m) lead Geartrain: 3-Stage Planetary Gear Ratio: 156:1 Lubrication: Aeroshell #17 Clutch (freespooling): Sliding Ring Gear Brake: Automatic Direct Drive Cone Drum Diameter/Length: 2.5"/5.0" (26.4cm/13cm) Weight: 72 lbs. (31 kgs.) Wire Rope: 50', 5/16" diameter (15m, 8mm diam.) Fairlead: Hawse Recommended Battery: 650 CCA minimum for winching Battery Leads: Front heavy-duty 7.5'/2.2m with quick connect plug Finish: Argent Powder Coat

12V DC PERFORMANCE SPECS Line Pull Lbs.(Kgs.) Line Speed FT./min(M/min.) Motor Current Pull by layer layer/Lbs(Kgs.) 0 48.5(14.78) 85 amps 1/6000(2722) 2000(907) 23.7(7.22) 175 amps 2/5460(2477) 4000(1814) 12.9(3.93) 360 amps 3/5000(2268) 6000(2722) 10.0(3.05) 465 amps 4/4670(2118)

Above performance specs are based on first layer of drum
