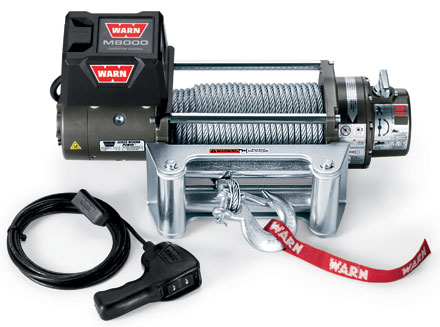

Warn M8000 Premium Winch w Roller Fairlead, 26502
|
|
Price: $695.55 after Mail-in Rebate
Click here to view our price match policy
Item Number: 26502
|
This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.
-
Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
- New, next generation electrical control box and hand-held remote control
- Low-profile design and separate control box allows for a wide range of mounting options
- Exclusive brake design provides superior control while winching
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Chip-resistant powder-coated finish
-
100' of 5/16" (38m of 8mm) diameter wire rope
|
Rated line pull: 8,000 lbs., (3630 kgs.) single-line
|
|
Motor: Series Wound, 12V 4.8 hp, 24V 2.1 hp,
|
|
Electrical controls: Contactor
|
|
Remote Control: Remote switch, 12 ft (3.7m) lead
|
|
Geartrain: 3-Stage Planetary
|
|
Gear ratio: 216:1
|
|
Clutch (freespooling): Sliding Ring Gear
|
|
Brake: Automatic Direct Drive Cone
|
|
Drum diameter/Length: 2.5 in/9.0 in (6.4cm/23cm)
|
|
Weight: 74 lbs. (34kgs.)
|
|
Wire rope: 100 ft, 5/16 ft (30m, 8mm)
|
|
Fairlead: Roller
|
|
Recommended Battery: 650 CCA minimum for winching
|
|
Battery leads: 2 gauge, 72 in (1.83m)
|
|
Finish: Argent Gray Powder Coat
|
|
|
12V DC PERFORMANCE SPECS
|
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
|
0
|
42(12.8)
|
80 amps
|
1/8000(3629)
|
|
2000(910)
|
16(4.88)
|
200 amps
|
2/7280(3302)
|
|
4000(1810)
|
11.9(3.63)
|
285 amps
|
3/6670(3026)
|
|
6000(2720)
|
9.79(2.98)
|
350 amps
|
4/6230(2826)
|
|
8000(3630)
|
8.01(2.44)
|
435 amps
|
|
| Above performance specs are based on first layer of drum
|
|
Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.)
|
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
|
|
