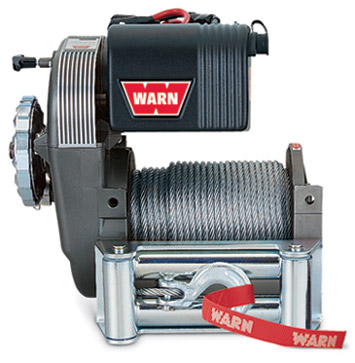

Warn M8274-50 Premium Winch w Roller Fairlead, 38631
|
|
Price: $1,715.59 after Mail-in Rebate
Click here to view our price match policy
Item Number: 38631
We can ship or you can pick it up at one of our four Florida locations to save $
|
This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.
-
Rugged spur-gear drive train and unique upright design
- Automatic disc braking system delivers smooth operation with superior heat dissipation
-
Roller fairlead, new-design remote control on, free spool clutch and battery cables are included
|
Rated line pull: 8,000 lbs., (4080 kgs.) single-line
|
|
Motor: Series Wound, 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw
|
|
Electrical controls: Solenoid Control Pack
|
|
Remote Control: Remote switch, 12 ft (3.7m) lead
|
|
Geartrain: Spur Gear
|
|
Gear ratio: 134:1
|
|
Clutch (freespooling): Sliding Motor Pinion Gear
|
|
Brake: Automatic disc type
|
|
Drum diameter/Length: 3.5 in/8.5 in (9cm/22cm)
|
|
Weight: 110 lbs. (50kgs.)
|
|
Wire rope: 150 ft, 5/16 ft diameter (46m, 8mm diam.)
|
|
Fairlead: Roller
|
|
Recommended Battery: 650 CCA minimum for winching
|
|
Battery leads: 2 gauge, 72 in (1.83m)
|
|
Finish: Powder Coat with Clear Coat
|
|
|
12V DC PERFORMANCE SPECS
|
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
|
0
|
73.4(22.4)
|
55 amps
|
1/8000(3629)
|
|
2000(910)
|
22(6.71)
|
190 amps
|
2/7460(3384)
|
|
4000(1810)
|
12(3.66)
|
275 amps
|
3/6980(3166)
|
|
6000(2720)
|
9.50(2.90)
|
350 amps
|
4/6620(3003)
|
|
8000(3630)
|
6.10(1.86)
|
450 amps
|
5/6290(2853)
|
|
| Above performance specs are based on first layer of drum
|
|
Winch Dimensions: 16.5" L. x 8.5" D. x 15" H.
(420mm L. x 220mm D. x 381 mm H.)
|
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
|
|
