Warn Olympus 25 Winch - Polished Aluminum, 87393

Price: Call For Quote

Click here to view our price match policy

Item Number: 87393

We can ship or you can pick it up at one of our four Florida locations to save $

Quantity:

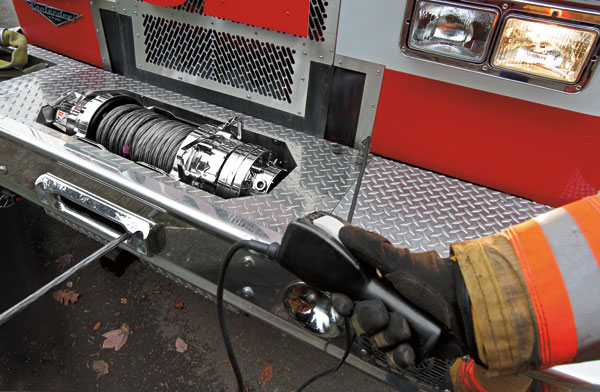

The Olympus is the world's most powerful and efficient electric winch. This lightweight and compact winch is equipped with an Axial Flux Permanent Magnet Motor that provides amazing power and extreme duty cycle that rivals hydraulic performance. Waterproof construction and superior corrosion resistance along with an overload Interrupt switch, provide excellent durability, control, and performance.

Remote Control Assembly, 32' included
Hawse fairlead included
100' x 5/8" WARN Synthetic Rope Assembly included
12V-24V Converter included (not shown in photo)

OLYMPUS 25 SPECIFICATIONS

Part Number: Polished Aluminum - PN 87393

Part Number: Black Powder Coat - PN 87390

Rated pulling force: 25000 lbf (11340 kgf)

Drum barrel diameter: 5.0" (127 mm)

Drum flange diameter: 9.0" (229 mm)

Distance between flanges: 12.0" (305 mm)

Recommended maximum rope diameter: 5/8" (15.9mm)

Recommended minimum rope breaking strength: 40000 lbf (18144 kgf)

Approximate shipping weight: 223.0 lbs (101.2 kg)

Duty Cycle (intermittent per SAE J706 section 6.2): N/A (N/A)

Mounting bolt torque: 80 ft*lbf (108 N*m)

Maximum layers of rope: 3

Gear reduction: 216:1

Brake type: Spring Applied Disc

Contactor / Remote Type: Industrial contactor with 32' (9.8m) heavy duty remote

Standards Compliance: CE Machinery Directive 2006/42/EC; CE Electromagnetic Compatibility 2004/108/EC

ACCESSORIES

Wire Assy- 5/8" x 100 ft-Synthetic: PN 86962

Fairlead-Hawse-Polished: PN 87596

Remote Control-Severe Duty-32 ft: PN 85394

PERFORMANCE BY LAYER - 1/2" (12.7 mm) dia. rope
Drum	Line Load			No Line Load		Drum Capacity
Layer	lbf	kgf	kN	ft/min	m/min	ft	m
1	25000	11340	111.2	8.4	2.6	25	7.6
2	20455	9278	91.0	10.2	3.1	56	17.1
3	17308	7851	77.0	12.1	3.7	100	30.5

PERFORMANCE DATA - FIRST LAYER
Line Load		Current Draw	Line Speed		Duty Cycle
lbf	kgf	amps	ft/min	m/min	min/10min
0	0	7.0	8.4	2.6	continuous
5000	2268	60.0	7.3	2.2	continuous
10000	4536	107.0	6.9	2.1	10.0
15000	6804	157.0	6.5	2.0	5.8
20000	9072	208.0	6.1	1.8	3.8
25000	11340	258.0	5.7	1.7	2.8
