Warn PowerPlant Dual Force Air Compressor and Winch w Roller Fairlead, 71800

Price: $1,571.99 after Mail-in Rebate

Click here to view our price match policy

Item Number: 71800

We can ship or you can pick it up at one of our four Florida locations to save $

Quantity:

This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.

Versatility times two. A best-in-class air compressor and a powerful WARN winch in one versatile unit. Whether you're winching and airing up while off-roading; inflating a raft or air mattress; running a nail gun or impact wrench; the PowerPlant is the way to get things done.

Winch features a 3-stage planetary gear train, Gen II series-wound motor with thermal protection switch, free-spooling clutch, integrated direct-drive cone brake
9,500 lbs. pulling capacity, 125' of 5/16" rope, fast line speeds
Air compressor delivers enough air to operate a variety of air tools or quickly inflate a raft. Max air pressure: 100 PSI, CFM rating: 12 CFM @ 0 PSI, 5 CFM @ ?? PSI. Onboard features include: integrated intercooler, pressure switch, thermal protection shutoff switch and air hose quick disconnect

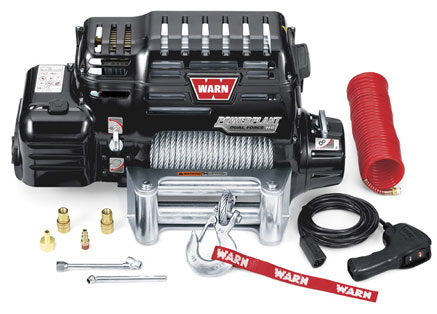

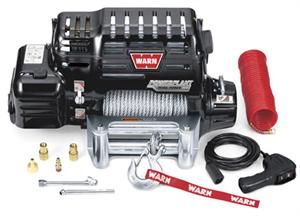

Includes next-generation remote control, hose and basic air fittings and couplings

Rated Line Pull: 9,500 lbs. (4310 kgs) single-line

Motor: Gen ll Series Wound 4.6 hp 12V, with Thermal Protection Shutoff Switch

Electrical controls: Contactor

Remote Control: Remote switch with Thermometric

Geartrain: 3-stage planetary

Gear ratio: 156:1

Clutch (freespooling): Sliding ring gear

Brake: Integrated direct-drive cone brake

Wire rope: 125 ft of 5/16 in (38m of 8mm diam.)

Fairlead: Roller

Recommended battery: 650 CCA minimum

Battery leads: 2 gauge, 72 in (1.83m)

Finish: High-gloss black powdercoat

Drum diameter/Length: 2.5 in/9 in (6.4cm/23cm)

Weight: 100 lbs (45 kgs)

Air Reservoir: 1/2 gallon tank with

High Air Flow Rating:: 12 CFM @ 0 psi, 5 CFM @ 90 psi

Max Air Pressure: 100 psi

Air Pressure Switch: Yes

Air Hose: 12 in nylon, with quick-disconnect. Brass air fittings and couplings

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	26.9 (8.2)	88 amps	1/9500 (4313)
2000 (910)	14.6 (4.45)	195 amps	2/8650 (4927)
4000 (1810)	10.3 (3.14)	262 amps	3/7920 (3595)
6000 (2720)	7.8 (2.38)	345 amps	4/7400 (3359)
8000 (3630)	6.1 (1.86)	420 amps	5/6940 (3150)
9500 (4310)	5.2 (1.58)	454 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 24.31" L. x 7.0" D. x 13.46" H. (617.5mm L. x 177.8mm D. x 341.9mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
