Warn PowerPlant Dual Force HD Air Compressor and Winch w Roller Fairlead, 71801

Price: $1,655.59 after Mail-in Rebate

Click here to view our price match policy

Item Number: 71801

We can ship or you can pick it up at one of our four Florida locations to save $

Quantity:

This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.

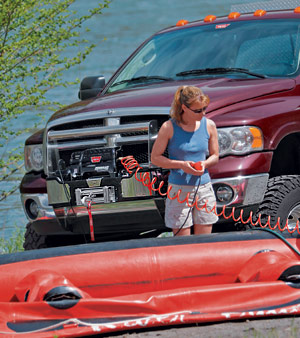

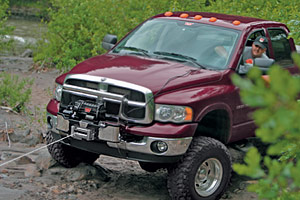

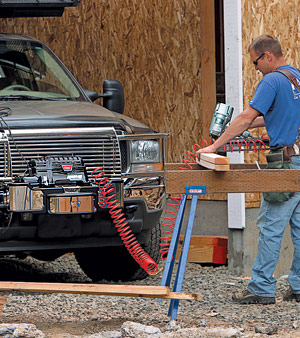

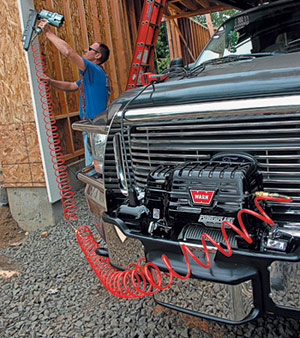

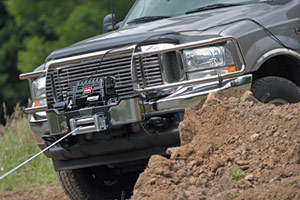

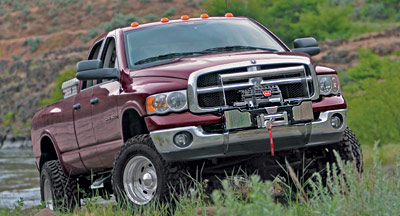

Versatility times two. A best-in-class air compressor and a powerful WARN winch in one versatile unit. Whether you're winching and airing up while off-roading; inflating a raft or air mattress; running a nail gun or impact wrench; the PowerPlant is the way to get things done.

Winch features a 3-stage planetary gear train, Gen II series-wound motor with thermal protection switch, free-spooling clutch, integrated direct-drive cone brake
12,000 lbs. pulling capacity, 80' of 3/8" wire rope, long duty cycle
Air compressor delivers enough air to operate a variety of air tools or quickly inflate a raft. Max air pressure: 100 PSI, CFM rating: 12 CFM @ 0 PSI, 5 CFM @ 90PSI. Onboard features include: integrated intercooler, pressure switch, thermal protection shutoff switch and air hose quick disconnect

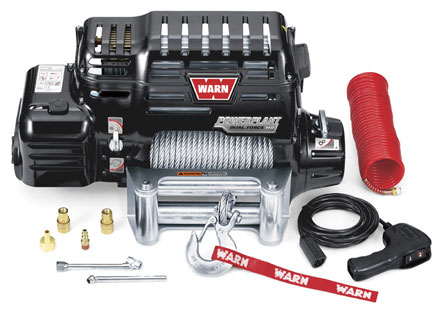

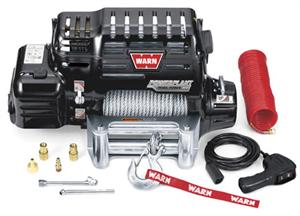

Includes next-generation remote control, hose and basic air fittings and couplings

Rated Line Pull: 12,000 lbs. (5440 kgs) single-line

Motor: Gen ll Series Wound 4.6 hp 12V, with Thermal Protection Shutoff Switch

Electrical controls: Contactor

Remote Control: Remote switch with Thermometric LED and 12 in (3.7m) lead

Geartrain: 3-stage planetary

Gear ratio: 216:1

Clutch (freespooling): Sliding ring gear

Brake: Integrated direct-drive cone brake

Wire rope: 80 ft of 3/8 in (24m of 9.5mm diam.)

Fairlead: Roller

Recommended battery: 650 CCA minimum

Battery leads: 2 gauge, 72 in (1.83m)

Finish: High-gloss black powdercoat

Drum diameter/Length: 2.5 in /9 in (6.4cm/23cm)

Weight: 115 lbs (52 kgs)

Air Reservoir: 1/2 gallon with Integrated Air Intercooler

High Air Flow Rating: 12 CFM @ 0 psi, 5 CFM @ 90 psi

Max Air Pressure: 100 psi

Air Pressure Switch: Yes

Air Hose: 12 ft nylon, with quick-disconnect. Brass air fittings and couplings

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	20.5 (6.25)	89 amps	1/12,000 (5440)
2000 (910)	11.7 (3.57)	153 amps	2/9517 (4317)
4000 (1810)	8.6 (2.61)	207 amps	3/7886 (3577)
6000 (2720)	6.7 (2.04)	265 amps	4/6732 (3054)
8000 (3630)	5.4 (1.65)	318 amps
9500 (4310)	4.4 (1.34)	370 amps
12000 (5440)	3.6 (1.10)	416 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 24.31" L. x 6.7" D. x 13.46" H. (617mm L. x 170mm D. x 342mm H.)

Mounting Bolt Pattern: Mounting bolt pattern 10.0" x 4.5" (254mm x 114.3mm)
