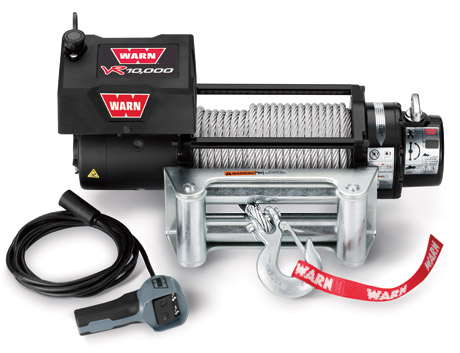

Warn VR10000 Winch with Roller Fairlead, 86255
|
|
Price: $529.99 after Mail-in Rebate
Click here to view our price match policy
In stock, can ship same day if ordered by 3 PM EST
Item Number: 86255
We can ship or you can pick it up at one of our four Florida locations to save $
|
|
This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.
*Product warranty void outside USA and Canada.
|
| VR 10000 SPECS/PART NUMBERS
|
| Part numbers: 86255
|
| Rated line pull: 10000 lbs. (4536 kgs)
|
| Motor: 12V DC, Series Wound
|
| Electrical controls: Solenoid
|
| Remote Control: Remote switch, 12 ft. (3.7m) Lead
|
| Geartrain: 3-Stage Planetary
|
| Gear ratio: 261:1
|
| Clutch (freespooling): Sliding Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Drum diameter/Length: 2.5 in./9.0 in. (6.4cm/23cm)
|
| Weight (kit shipping): 89 lbs. (40.4 kgs)
|
| Wire rope: 3/8 in. x 94 ft. (9.5mm x 28.6m)
|
| Fairlead: Roller
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery leads: 2 gauge, 72 in. (1.83m)
|
| Finish: High-gloss powder coat over primer undercoating
|
| Warranty: Limited Lifetime
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
25.9 (7.8)
|
66 amps
|
1/10000 (4536)
|
| 2000 (910)
|
13.0 (3.9)
|
160 amps
|
2/8000 (3629)
|
| 4000 (1810)
|
9.6 (2.9)
|
247 amps
|
3/7280 (3302)
|
| 6000 (2720)
|
7.1 (2.1)
|
332 amps
|
4/6670 (3026)
|
| 8000 (3630)
|
5.0 (1.5)
|
417 amps
|
5/6230 (2826)
|
| 10000(4536)
|
2.3 (0.7)
|
502 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
| Winch Dimensions: 20.80 in. L x 6.3 in. D x 6.97 in H (528mm L x 160mm D x 177mm H)
|
| Mounting Bolt Pattern: 10.0 in. x 4.5 in. (254mm x 114.3mm)
|
|
|
|
