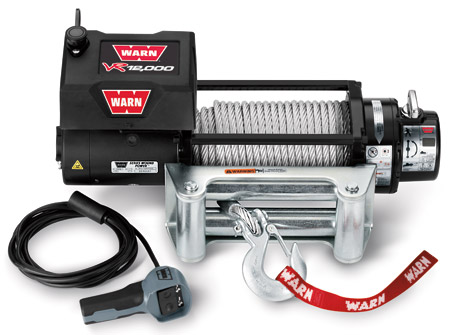

Warn VR12000 Winch w Roller Fairlead, 86260
|
|
Price: $629.99 after Mail-in Rebate
Click here to view our price match policy
In stock, can ship same day if ordered by 3 PM EST
Item Number: 86260
We can ship or you can pick it up at one of our four Florida locations to save $
|
|
This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.
*Product warranty void outside USA and Canada.
|
| VR12000 SPECS/PART NUMBERS
|
| Part numbers: 86260
|
| Rated line pull: 12000 lbs. (5443 kgs)
|
| Motor: 12V DC, Series Wound
|
| Electrical controls: Solenoid
|
| Remote Control: Remote switch, 12 ft. (3.7m) Lead
|
| Geartrain: 3-Stage Planetary
|
| Gear ratio: 216:1
|
| Clutch (freespooling): Sliding Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Drum diameter/Length: 2.5 in./9.0 in. (6.4cm/23cm)
|
| Weight (kit shipping): 89 lbs. (40.4 kgs)
|
| Wire rope: 3/8 in. x 94 ft. (9.5mm x 28.6m)
|
| Fairlead: Roller
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery leads: 2 gauge, 72 in. (1.83m)
|
| Finish: Powder coat over primer undercoating
|
| Warranty: Limited Lifetime
|
|
| 12V DC performance specs
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
28.4 (8.6)
|
65 amps
|
1/12000 (5443)
|
| 2000 (910)
|
12.6 (3.8)
|
144 amps
|
2/11120 (5044)
|
| 4000 (1810)
|
9.5 (2.8)
|
215 amps
|
3/10340 (4690)
|
| 6000 (2720)
|
7.5 (2.2)
|
281 amps
|
4/9770 (4432)
|
| 8000 (3630)
|
5.8 (1.7)
|
349 amps
|
5/9250 (4196)
|
| 10000 (4540)
|
4.4 (1.3)
|
415 amps
|
|
| 12000 (5440)
|
3.6 (1.0)
|
457 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
| Winch Dimensions: 21.83 in. L x 6.3 in. D x 6.97 in. H (554mm L x 160mm D x 177mm H)
|
| Mounting Bolt Pattern: 10.0 in. x 4.5 in. (254mm x 114.3mm)
|
|
|
|
