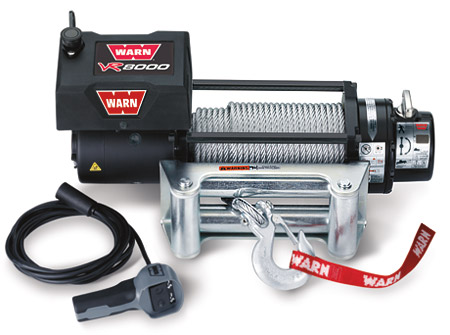

Warn VR8000 Winch w Roller Fairlead, 86245
|
|
Price: $429.99 after Mail-in Rebate
Click here to view our price match policy
In stock, can ship same day if ordered by 3 PM EST
Item Number: 86245
We can ship or you can pick it up at one of our four Florida locations to save $
|
|
This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.
*Product warranty void outside USA and Canada.
|
| VR8000 SPECS/PART NUMBERS
|
| Part numbers: 86245
|
| Rated line pull: 8000 lbs. (3629 kgs)
|
| Motor: 12V DC, Series Wound
|
| Electrical controls: Solenoid
|
| Remote Control: Remote switch, 12 ft. (3.7m) Lead
|
| Geartrain: 3-Stage Planetary
|
| Gear ratio: 216:1
|
| Clutch (freespooling): Sliding Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Drum diameter/Length: 2.5 in./9.0 in. (6.4cm/23cm)
|
| Weight (kit shipping): 80 lbs. (36.3 kgs)
|
| Wire rope: 5/16 in. x 94 ft. (8mm x 29m)
|
| Fairlead: Roller
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery leads: 2 gauge, 72 in. (1.83m)
|
| Finish: Powder coat over primer undercoating
|
| Warranty: Limited Lifetime
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
29 (8.8)
|
69.2 amps
|
1/8000 (3629)
|
| 2000 (910)
|
14.2 (4.3)
|
179.2 amps
|
2/7280 (3302)
|
| 4000 (1810)
|
9.9 (3)
|
281 amps
|
3/6670 (3026)
|
| 6000 (2720)
|
7.3 (2.2)
|
381 amps
|
4/6230 (2826)
|
| 8000 (3630)
|
4.8 (1.4)
|
457 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
| Winch Dimensions: 20.80 in. L x 6.3 in. D x 6.97 in. H (528mm L x 160mm D x 177mm H)
|
| Mounting Bolt Pattern: 10.0 in. x 4.5 in. (254mm x 114.3mm)
|
|
|
|
