Warn XD9000i Portable Winch, 37441
|
|
Price: $1,297.27 after Mail-in Rebate
Click here to view our price match policy
Item Number: 37441
We can ship or you can pick it up at one of our four Florida locations to save $
|
|
This product qualifies for a rebate from Warn for purchases between March 1, 2012 and May 31, 2012.
WARN XD9000i PORTABLE
Fast and reliable in real trail conditions
|
No-load retrieval line speed is fast-38 feet per minute. Integrated control pack protects the winch's electrical components, and the 4.6hp Series Wound motor delivers big torque and power. Plugs into any standard 2" Class III receiver hitch and gives you the ability to move the winch from the front or back of your rig. Power is supplied through quick connect plugs. A good choice for full-size rigs and heavier recovery situations.

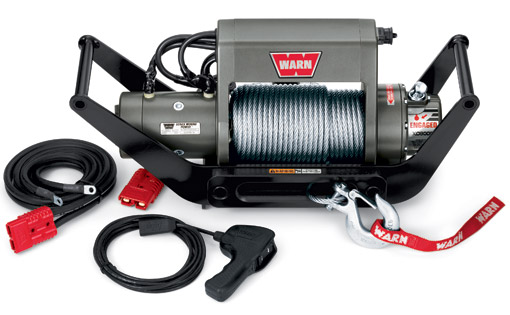

This Kit includes winch, remote, carrier, 7.5' power lead with quick connect plug for front of vehicle and hawse fairlead. Front receiver and rear power lead sold separately.
|
| XD9000i PORTLABLE SPECS/PART NUMBERS
|
| Part Number: 37441 (12V)
|
| Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
|
| Intended Use/Application: Vehicle Recovery / For Trucks and SUVs
|
| Motor: 12V 4.6hp, Series Wound
|
| Remote Control: Remote, 12' (3.7m) lead
|
| Geartrain: 3-Stage Planetary
|
| Gear Ratio: 156:1
|
| Lubrication: Aeroshell #17
|
| Clutch (freespooling): Sliding Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
|
| Weight: 104 lbs. (47 kgs.)
|
| Wire Rope: 125', 5/16" diameter (38m, 8mm diameter)
|
| Fairlead: Hawse
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery Leads: Front heavy-duty 7.5'/2.2m with quick connect plug
|
| Finish: Argent Powder Coat
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
38(11.6)
|
70 amps
|
1/9000(4082)
|
| 2000(910)
|
14.4(4.39)
|
180 amps
|
2/8190(3715)
|
| 4000(1810)
|
11(3.35)
|
255 amps
|
3/7500(3402)
|
| 6000(2720)
|
8.67(2.64)
|
330 amps
|
4/7010(3180)
|
| 8000(3630)
|
6.88(2.10)
|
415 amps
|
5/6570(2980)
|
| 9000(4080)
|
6.38(1.94)
|
460 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
|
|
