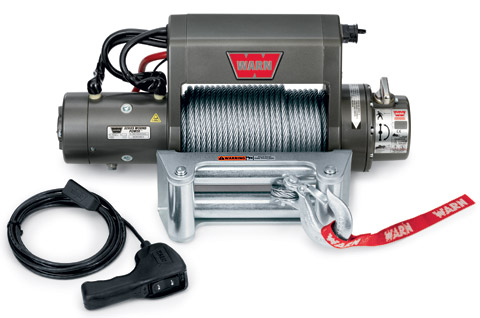

Warn XD9000i Premium Winch w Roller Fairlead, 27550
|
|
Price: $1,087.19 after Mail-in Rebate
Click here to view our price match policy
Item Number: 27550
We can ship or you can pick it up at one of our four Florida locations to save $
|
|
|
No-load retrieval line speed of 38' per minute. Integrated solenoid. Runs cool with low amp draw for long winching duty cycles. Comes with 125' of 5/16" wire rope.
- Integrated control box provides excellent protection to electronics
- Exclusive brake design provides superior control while winching
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Next-genertion remote control with 12' (3.7m) lead
- Chip-resistant, powder-coated finish
- 125' of 5/16" (38m of 8mm) diameter wire rope
|
| XD9000i SPECS/PART NUMBERS
|
| Part Numbers: 27550
|
| Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
|
| Motor: Series Wound 12V 4.6 hp, 24V 2.5 hp
|
| Electrical controls: Solenoid
|
| Remote Control: Remote switch, 12 ft (3.7m) lead
|
| Geartrain: 3-Stage Planetary
|
| Gear ratio: 156:1
|
| Clutch (freespooling): Sliding Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Drum diameter/Length: 2.5 in /9.0 in (6.4cm/23cm)
|
| Weight: 85 lbs. (38.5kgs.)
|
| Wire rope: 125 ft, 5/16 in dia. (38m, 8mm)
|
| Fairlead: Roller (Multi-Mount kit includes Hawse fairlead)
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery leads: 2 gauge, 72 in (1.83m)
|
| Finish: Argent Gray Powder Coat
|
| Winch dimensions: 23.1in L. x 6.3 in D. x 10.0 in H. (587mm L. x 160mm D. x 254mm H.)
|
| Mounting bolt pattern: 10.0 in x 4.5 in (254mm x 114.3mm)
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
38(11.6)
|
70 amps
|
1/9000(4082)
|
| 2000(910)
|
14.4(4.39)
|
180 amps
|
2/8190(3715)
|
| 4000(1810)
|
11(3.35)
|
255 amps
|
3/7500(3402)
|
| 6000(2720)
|
8.67(2.64)
|
330 amps
|
4/7010(3180)
|
| 8000(3630)
|
6.88(2.10)
|
415 amps
|
|
| 9000(4080)
|
6.38(1.94)
|
460 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
Winch Dimensions: 23.1" L. x 6.3" D. x 10.0" H.
(553mm L. x 160mm D. x 252mm H.)
|
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
|
|
