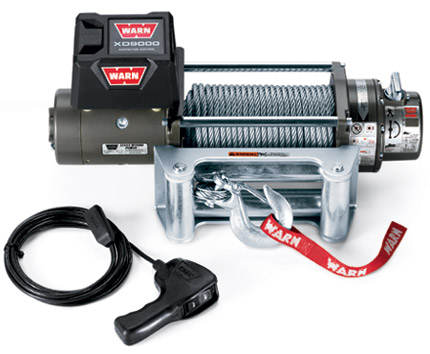

Warn XD9000 Premium Winch w Roller Fairlead, 28500


Price: $1,291.38
Click here to view our price match policy
Item Number: 28500
We can ship or you can pick it up at one of our four Florida locations to save $
XD9000 SPECS
Part number: 28500 (12V)
Part number: 265012 (24V) Contact WARN Customer Service for Availability
Rated line pull: 9,000 lbs., (4080 kgs.) single-line
Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5 in/9.0 in (6.4cm/23cm)
Weight: 78 lbs. (35kgs.)
Wire rope: 100 ft, 5/16 in dia. (30m, 8mm)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 38(11.6) 70 amps 1/9000(4082)
2000(910) 14.4(4.39) 180 amps 2/8190(3715)
4000(1810) 11(3.35) 255 amps 3/7500(3402)
6000(2720) 8.67(2.64) 330 amps 4/7010(3180)
8000(3630) 6.88(2.10) 415 amps
9000(4080) 6.38(1.94) 460 amps
24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 22.5(6.86) 46 amps 1/9000(4082)
2000(910) 14.5(4.42) 93 amps 2/8190(3715)
4000(1810) 11(3.35) 131 amps 3/7500(3402)
6000(2720) 9.1(2.77) 169 amps 4/7010(3180)
8000(3630) 7.9(2.41) 207 amps 5/6570(2980)
9000(4080) 7.4(2.26) 226 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 21.8" L. x 6.3" D. x 7.6" H.
(555mm L. x 160mm D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
